Detailed Product Description

High Flex USB 2.0 Cable A Plug to Mini B Plug with Thumbscrew Lock For Machine Vision Camera

Product Description:

High Flex USB Cable USB 2.0 A Plug to Mini B Plug with Locking Screws For Machine Vision Camera

(Kabel USB 2.0 4pin - 5pin Mini 480Mbit/s USB 2.0 Kameras Kabel )

(Printer USB Cable Panel Mount USB 2.0 Cable with Lock Screw available)

The size of the locking mini B has been designed to be as small as possible, and we have 2 moldings options, the screw locking distance details will be offered when contacting us.

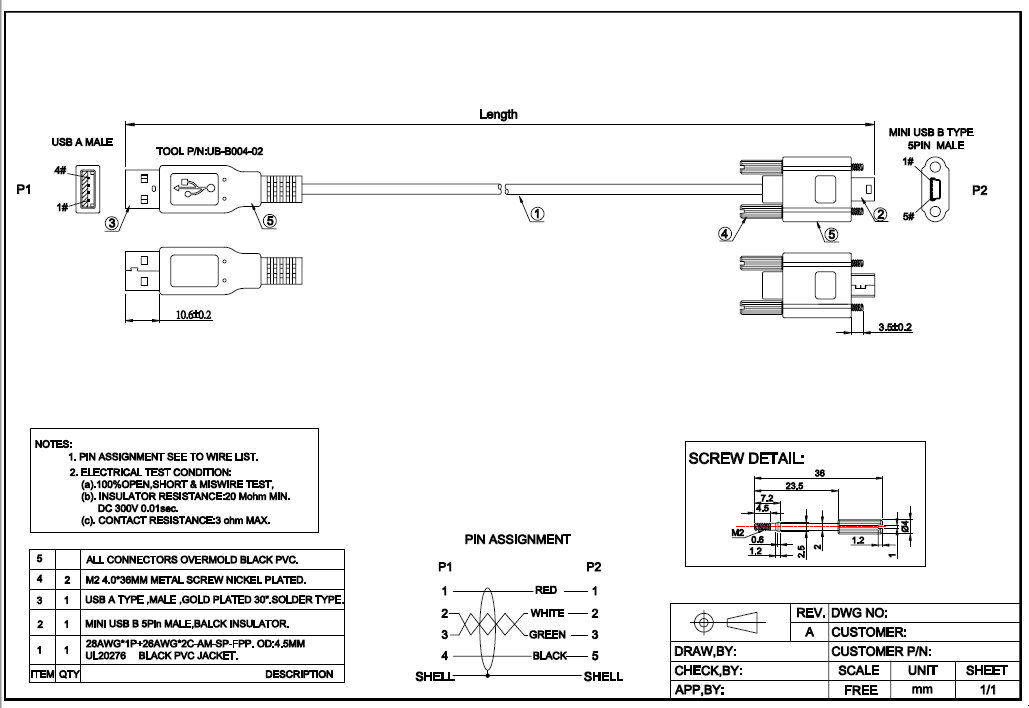

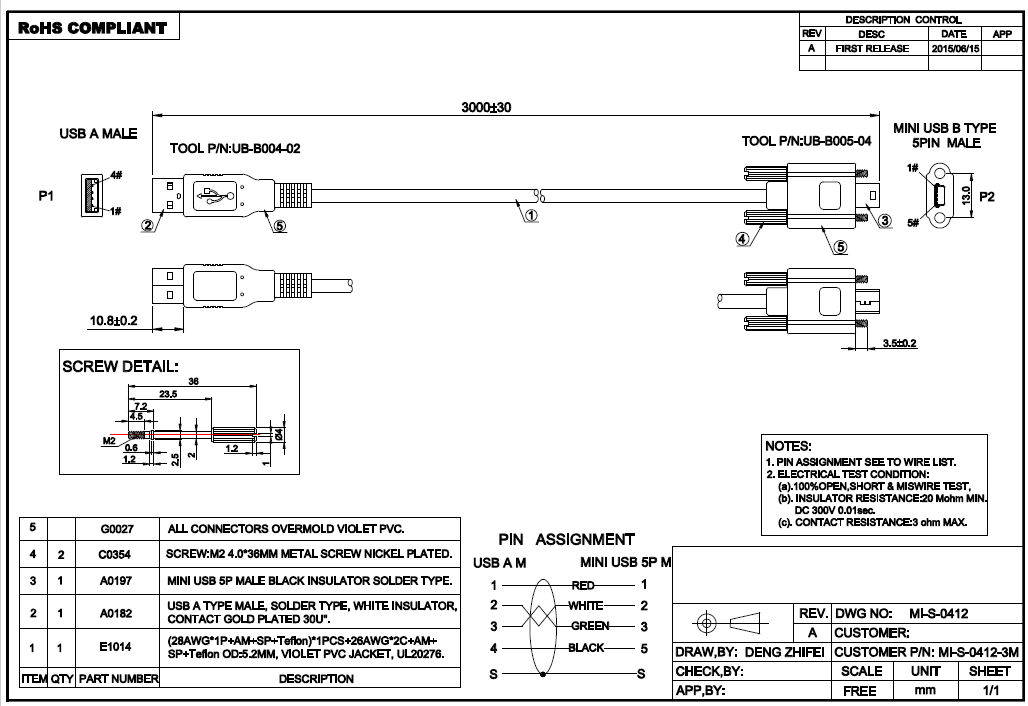

We have more USB 2.0 High-Flex/Continuous Flex cables and standard USB 2.0 cable for machine vision cameras(cable construction and specification refer to below cable drawing with all details):

Key Specifications/Special Features:

• Fast transfer speeds between storage devices and peripherals

• Connection: USB type-A male to USB  mini B male with screw locking

• Color: Black / Violet

• Cable length: 0.1m-5m is available Max length 10meters with PCB build in as signal magnifier.

• Connector: gold plated

• Conduct: high pure copper

• A ferrite core is optional and free

• Fully shielded to protect against external signal interference

• Passed voltage test and short test, and each product is strictly tested one by one before shipping

• 1~2 year guarantee

• Cable options: standard USB cable and high flexiable USB cable




Application:

USB Device

Industrial Camera

Machine vision

Chain flex system

Printer Device
