high-speed USB3 A/M to micro B/M with both screw mount for industrial cameras and machine vision applications



The length and the color(usually black or violet) of the cable can be customized.

The angle of the connector either type A side or micro B side can be customized. eg: right angle, left angle, side up angle, side down angle.

The screw mount of the connector can be customized. eg: screw type(usually we use M2), screw dimension, type A side screw mount, micro B side screw mount or both.

Shield cables (28AWG/24AWG) to ensure high speed and stable data transmission, we can also add ferrite bead at both side.

This cable have normal version(black color) and high flexiable version(violet color, for drag chain/flexchain towline).

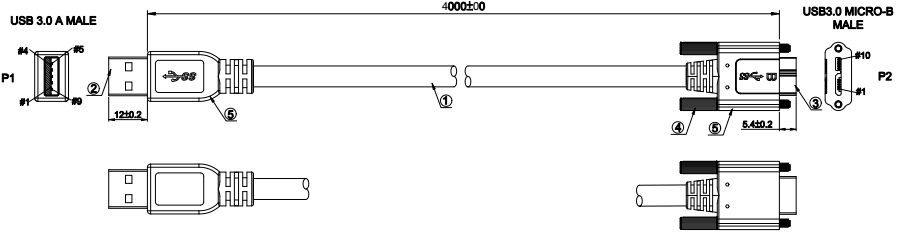

usb3 A/M to micro B/M straight

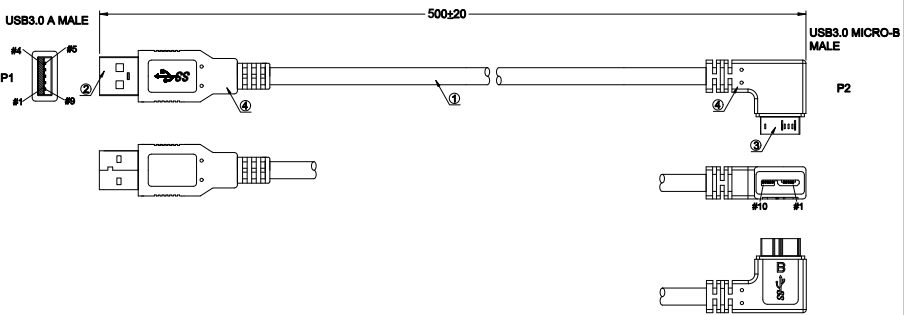

USB3 A/M to micro B/M side angle

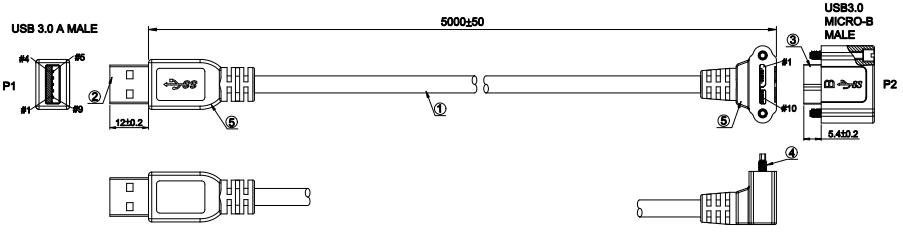

usb3 A/M to micro B/M right angle

Applications:

automatic optic inspection(AOI), sorter, microscope, industrial automation, smart transportation(ITS) and etc.


Used for any industrial line scan cameras or area scan cameras with USB3.0 micro-B interface, for example, basler ace cameras, dalsa camera, imperx cameras, allied cameras, baumer cameras, rohm cameras, cognex cameras and etc.

used usually as power cable, data cable, io cable, trigger cable.
