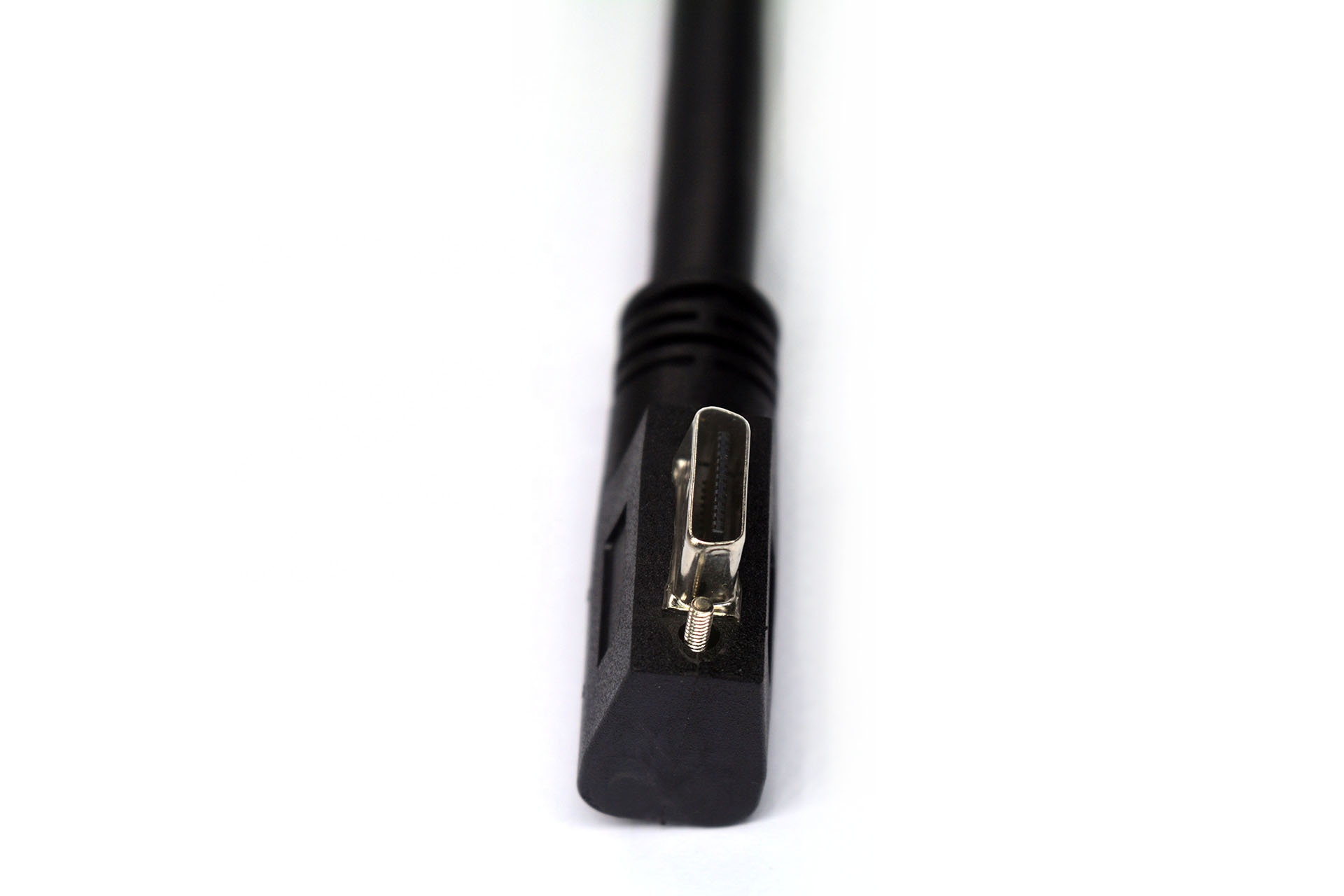

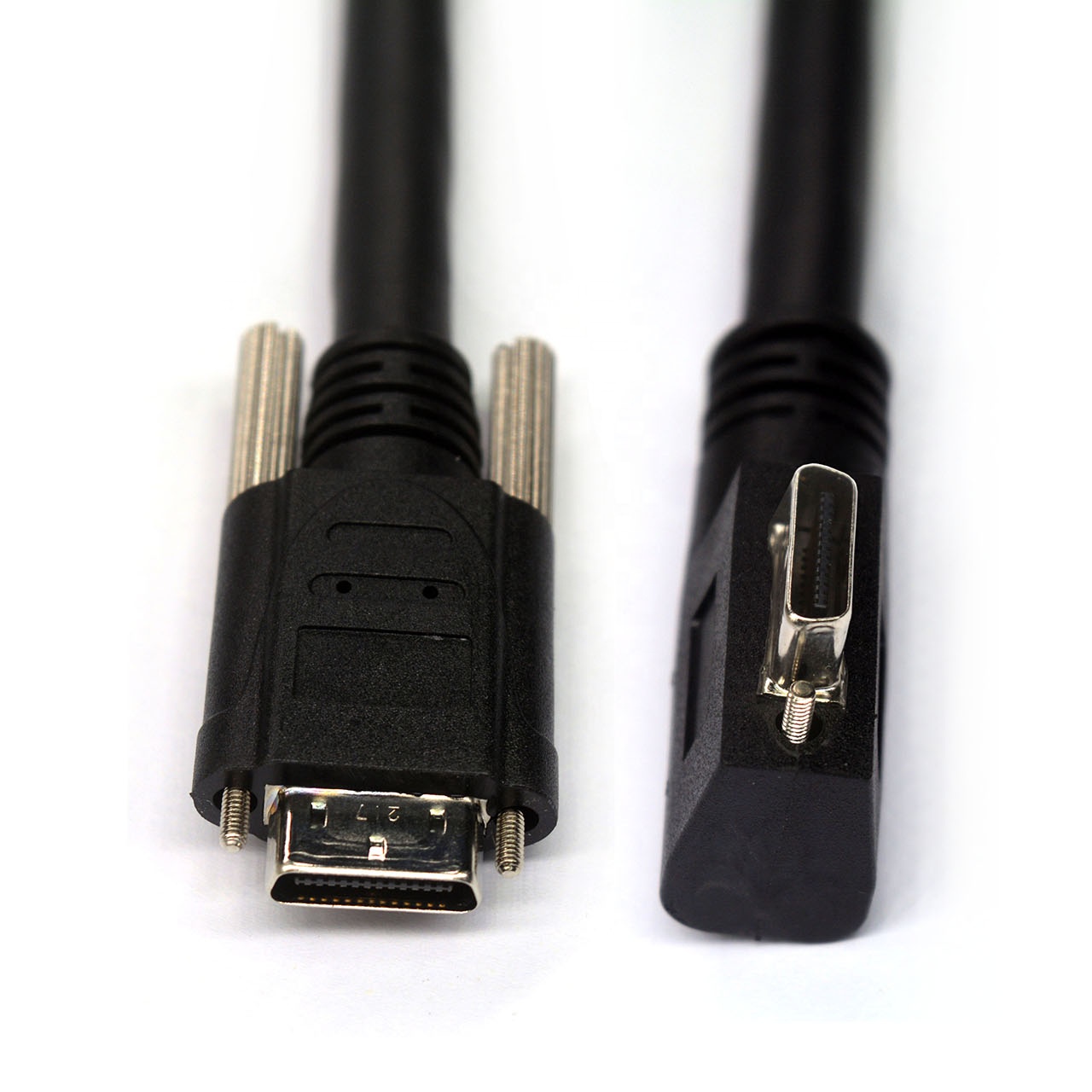

Camera Link SDR male to SDR male R/A exit left high flexible with locking screws cables for industrial cameras

Model Number: DHT-S-0030
Type: Camera Link Cable
Place of Origin: Guangdong, China
Brand Name: Donghoo
Number of Conductors: ≥ 10
Certification: CE, FCC, RoHS, REACH
Bending Cycles: >10 million
Connector one side: Camera Link MDR
Connector another side: Camera Link SDR/HDR RA exit left
Color: Black
OD: 9.5mm
AWG: (28AWG*1P+AM)*11PCS+24AWG*2C+2D


Product Description
Product Name
Camera Link SDR/HDR male to SDR/HDR male R/A exit left high flexible with locking screws PoCL cables for industrial cameras
Material
PVC, copper
Function
machine vision industrial cameras
Package
Plastic ziplock bag per piece, corrugated box per batch.
Camera Link SDR/HDR male to SDR/HDR male R/A exit left high flexible with locking screws PoCL cables for industrial cameras

This Camera Link cable is used for industrial camera and frame grabber applications. High-flex cable assemblies meet or exceed the
standard specifications of the Camera Link standard. Compatiable with 3M Shrunk Delta Ribbon (SDR) Cable Assembly, 1SD26-3120-00C-XXX series, such as 1SD26-3120-00C-200, 1SD26-3120-00C-500, 1SD26-3120-00C-A00.
Additionally, deliver exceptionally long life of at least 5~10 million flex cycles, providing flexibility for moving applications.
We manufacture Camera Link cable assemblies to any length for custom fitting. The over mold jacket is extremely durable, flexible, and water-proof. Each twisted conductor features ultraflex, finely stranded wires, with dual shielding for optimum signal quality and speed.
.
Compatibility Cameras List
* Baume HXC series, SXC series. eg: HXC13, SXC20.
* CIS VCC series cameras. eg: CIS VCC-12CL1M Camera.
 * JAI PMCL series, CL series, such as AP-3200T-PMCL.
* Sony XCL series cameras, such as XCL-U1000.
* ILLUNIS CMV series cameras, such as CMV50C-CL.
* Allied Vision Goldeye CL series, such as CL-008 Cool TEC1.
* FLIR TAU2 Camera Link Board.
* FLIR Boson Camera Link Accessory Kit (421-0063-00).
* Imperx NEW Tiger Series, such as T2040.
* Imperx Bobcat Camera Link series, such as B1040.
* Opto-e COE HR AS series, such as COE50MCLIR-K.
* Dalsa AViiVA series, ELiiXA+ series, Genie Nano-CL series, Linea Mono series, Piranha4 series, Piranha HS series.
* JAI Apex series, Go series, Spark series, Sweep+ series, Wave series, such as SW-4000TL-PMCL. Model number ends with PMCL or CL.
* Basler ace classic series area scan cameras such as acA2040-180kc.
* Basler beat series area scan cameras such as beA4000-62kc.
* Basler racer series line scan cameras such as raL4096-80km.
Replaceable Cables
* Basler Cable Camera Link, PoCL, SDR/SDR, P, 3 m - Data Cable(order number 2000031079).
* Basler Cable Camera Link, PoCL, SDR/SDR, P, 5 m - Data Cable(order number 2000031080).
* Basler Cable Camera Link, PoCL, SDR/SDR, P, 10 m - Data Cable(order number 2000031081).
* Hewtech Cable, CLS-SS0-SS0-HFST1-xxxx-00K series cameralink cable, such as CLS-SS0-SS0-HFST1-0100-00K.
* 3M Shrunk Delta Ribbon (SDR) Cable Assembly, 1SD26-3120-00C-XXX series, such as 1SD26-3120-00C-200, 1SD26-3120-00C-500, 1SD26-3120-00C-A00
* 3M Shrunk Delta Ribbon (SDR) Cable Assembly, 1SD26-R120-00C-XXX series, such as 1SD26-R120-00C-200, 1SD26-R120-00C-500, 1SD26-R120-00C-A00
* 3M Shrunk Delta Ribbon (SDR) Cable Assembly, 1SF26-L120-00C-XXX series, such as 1SF26-L120-00C--100, 1SF26-L120-00C-200, 1SF26-L120-00C-500, 1SF26-L120-00C-A00.
Product Usage

    • Product usage introduction

One end of the cable connect the industrial cameras with its PoCL SDR/HDR connector, the another end connect the Frame Grabber with its PoCL SDR connector.

The cable can be installed on a drag chain, the bending radius should no less than 10 times of the cable OD. For more install tips, please refer your drag chain install guide.
Quality Control
Packing&Shipping
Plastic ziplock bag per piece, corrugated box per batch.
