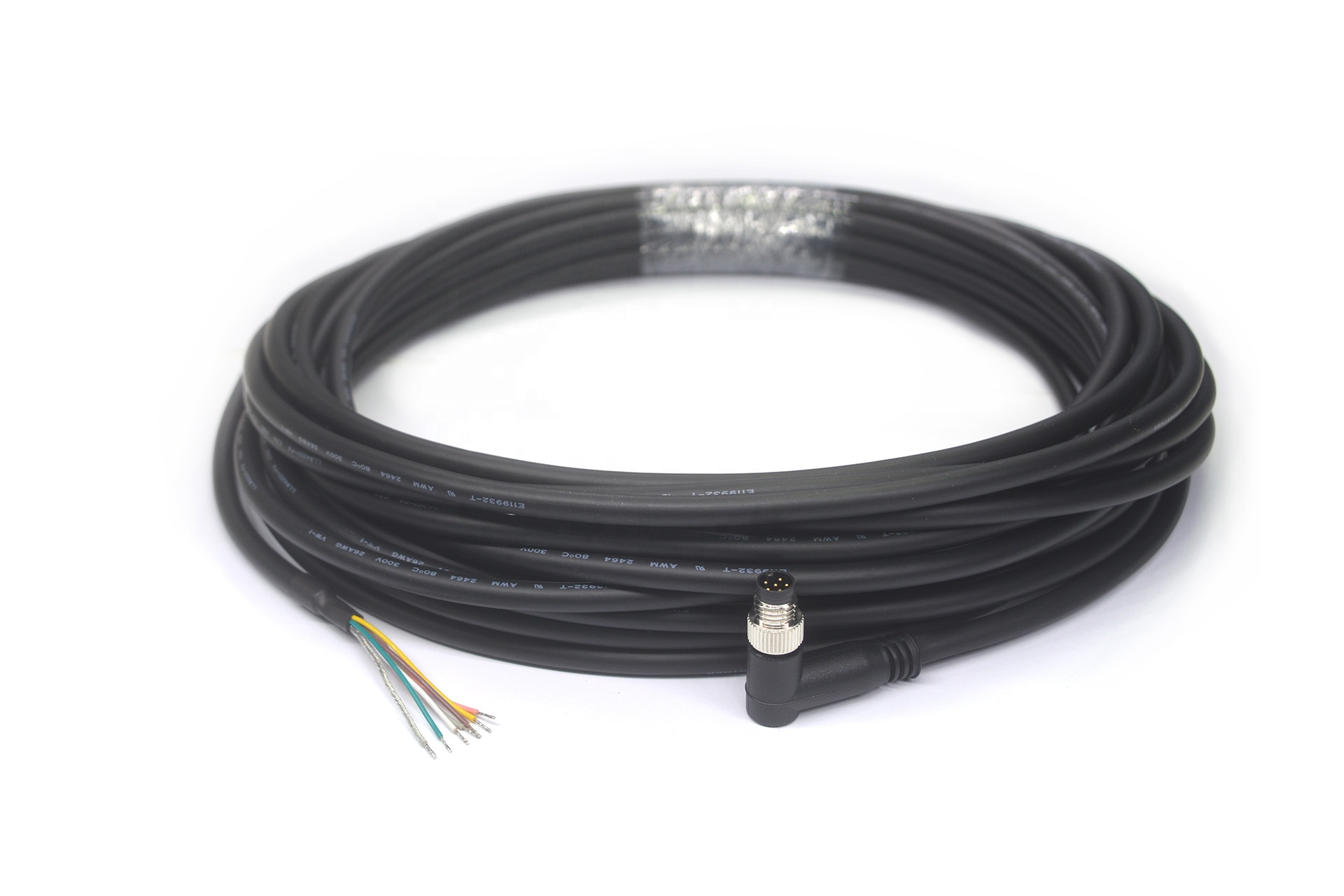

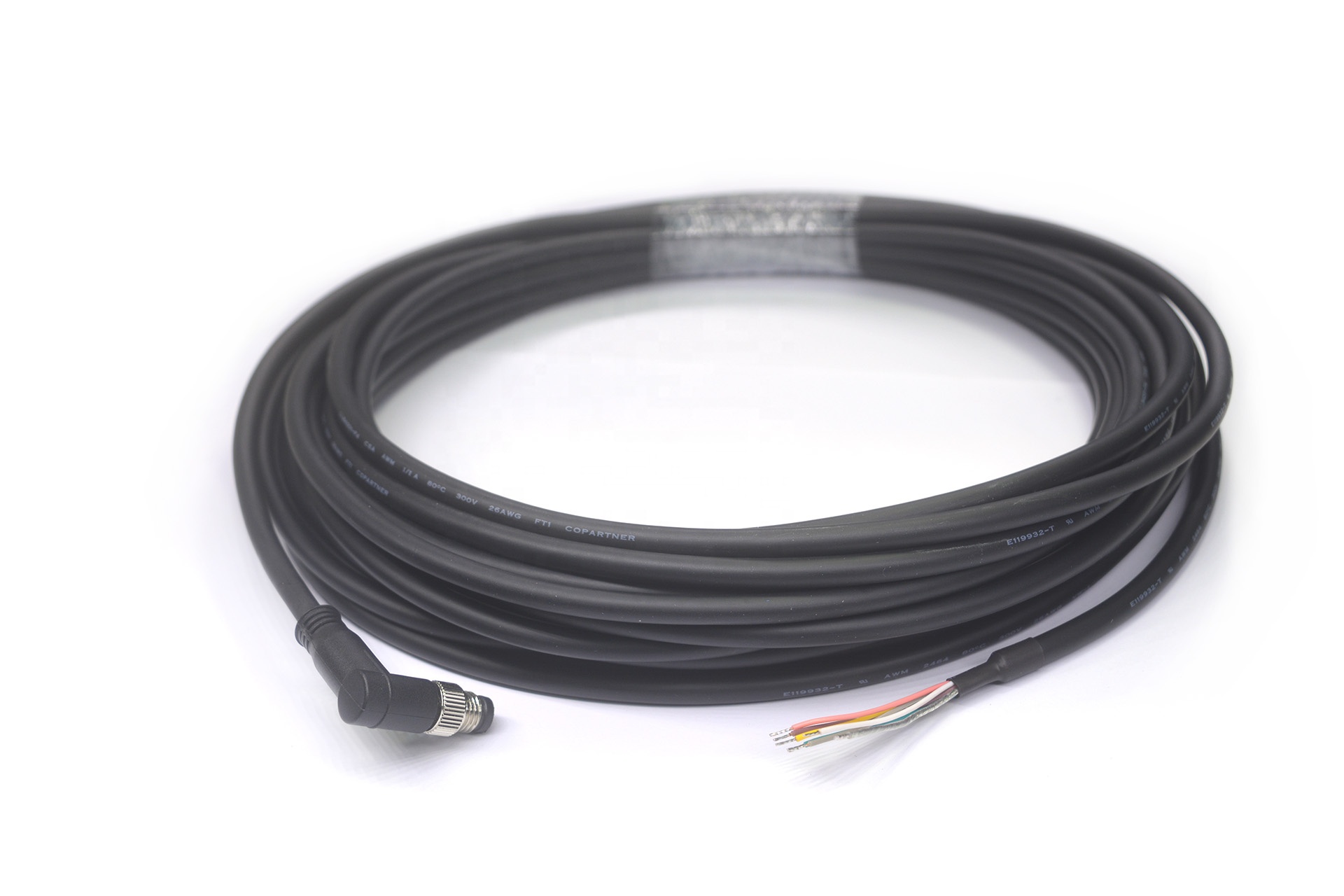

M8 A-code 6pin angled male high flex strobe trigger waterproof cables for Basler boost and ace 2 industrial cameras

Model Number: DHT-S-0073
Type: COAXIAL
Place of Origin: Guangdong, China
Brand Name: Donghoo
Number of Conductors: 6
Bending Cycles: >10 million

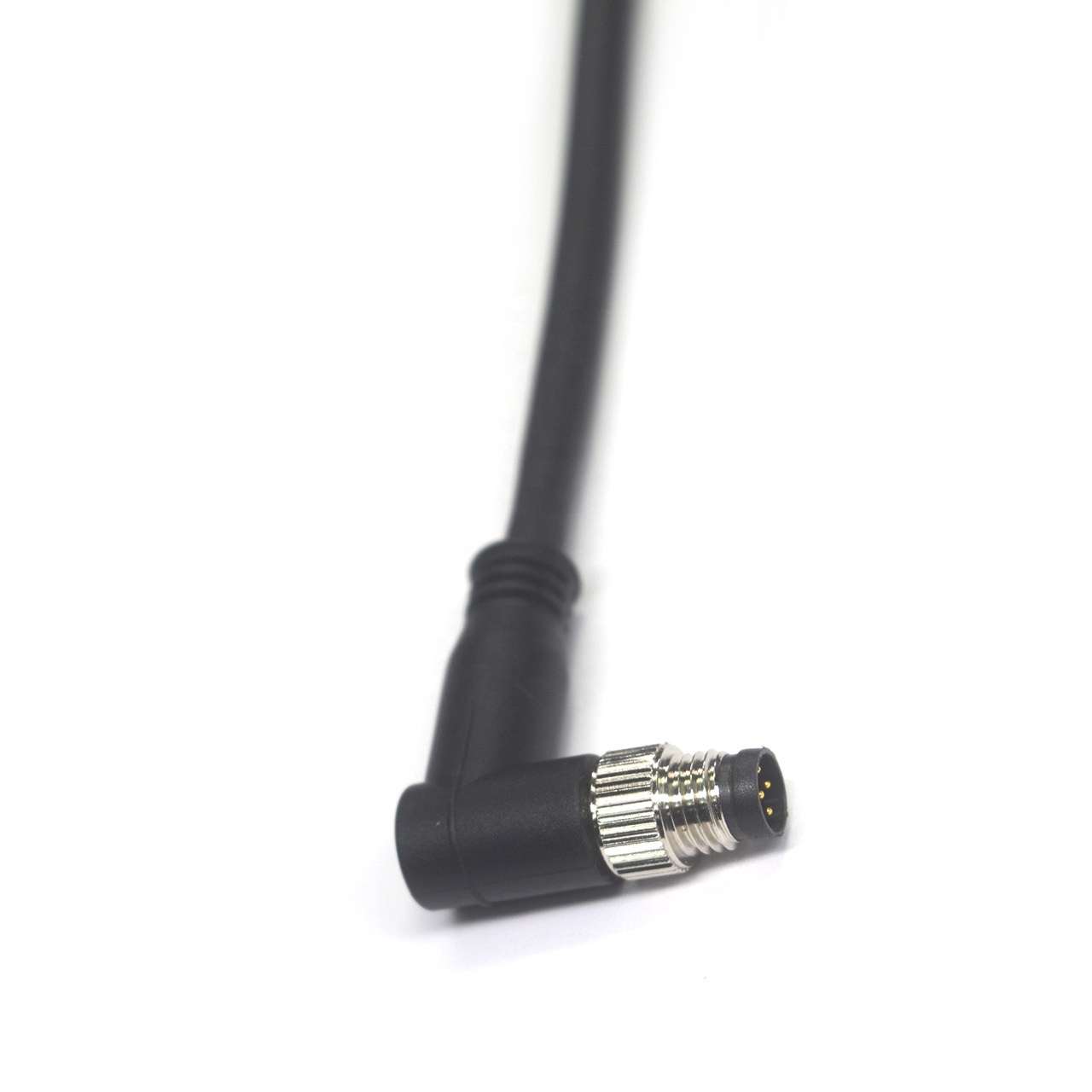

Connector one side: M8 6 pin A-code angled male

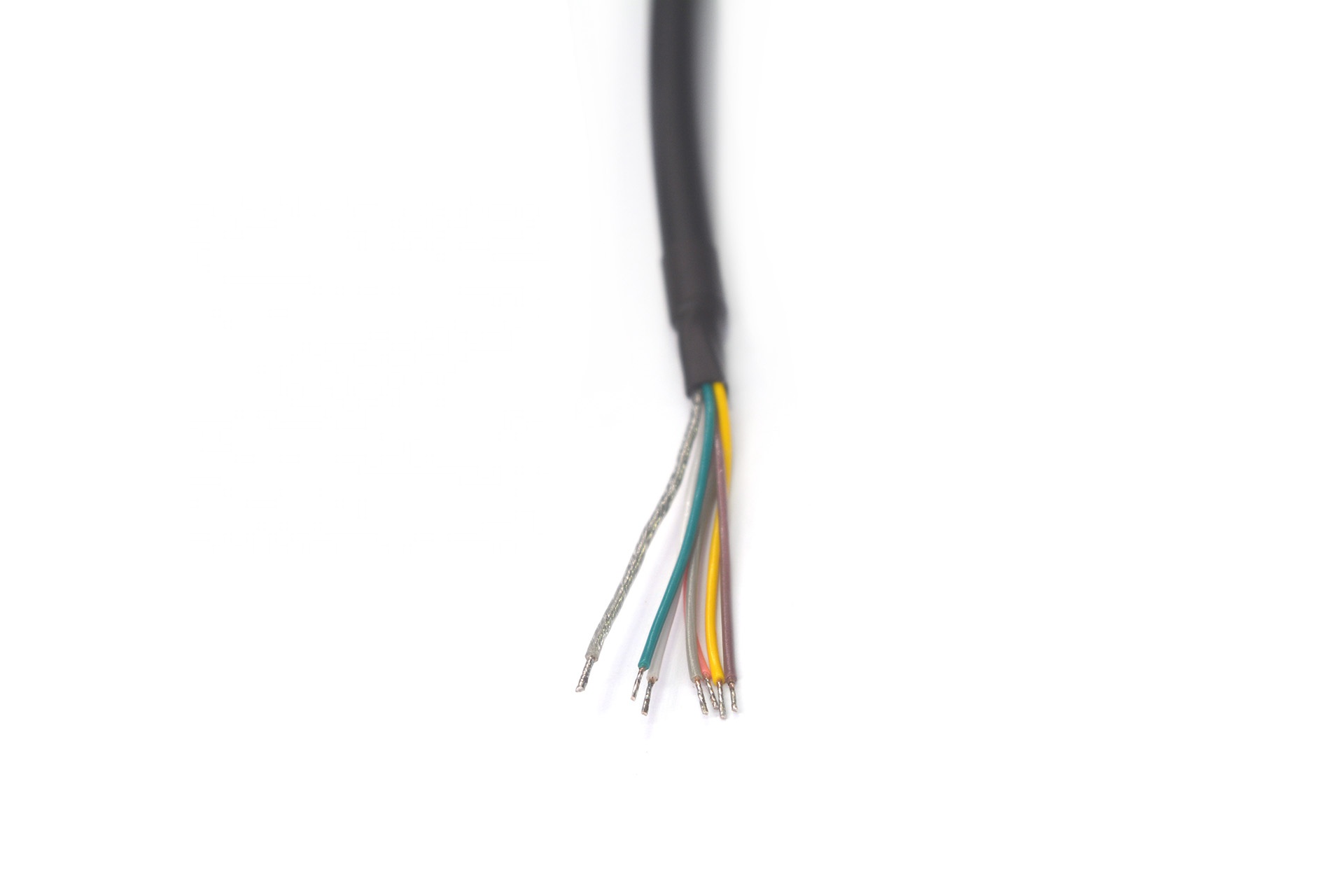

Connector another side: tinned open end
Color: Black
OD: 5.5mm
AWG: 26


Product Description
Product Name
M8 A-code 6pin angled male high flex strobe trigger waterproof cables for Basler boost and ace 2 industrial cameras
Material
PVC, copper
Function
machine vision industrial cameras
Package
Plastic ziplock bag per piece, corrugated box per batch.
  • M8 A-code 6pin angled male high flex strobe trigger waterproof cables for Basler boost and ace 2 industrial cameras

This power I/O cable with M8 plug for the control of the I/O ports of the Basler boost and ace 2 cameras. With the Basler ace 2 GigE,
the cable can also be used to supply power.
The cable has a M8 6-pin connector on the camera side. The other end is open so that the cable can be shortened to fit the specific application.

Features:
* High flexible, bending more than 5 million cycles.
* Outdoor CMX rated, waterproof IP68 M8 6pin male double shielded.
* Easy, time-saving installation: M8 connectors with a push-pull fast-locking system allow secure, tool-free connections.
* Meets IP67/IP68 waterproof requirements;.

Please refer the "Compatibility List" for more details.
Compatibility Cameras List
* Basler boost and ace 2 industrial cameras.
* Basler CoaXPress Evaluation Kit.
Replaceable Cables
* Basler 2200000315 2200000296 M8 6-PIN A-code male cable
* All cables that meet M8 6-PIN A-code Standards.

Product Usage
    • Product usage introduction

1. Connect the cable's M8 connector to the camera M8 female connector.
2. Tinned the open IO wires to your vision system.
The cable can be installed on a drag chain, the bending radius should no less than 10 times of the cable OD. For more install tips, please refer your drag chain install guide.
