Right angle GigE cable CAT6 SSTP for industrial vision
Model Number: RJ45-RA-UP
Application: Gige Vision Camera

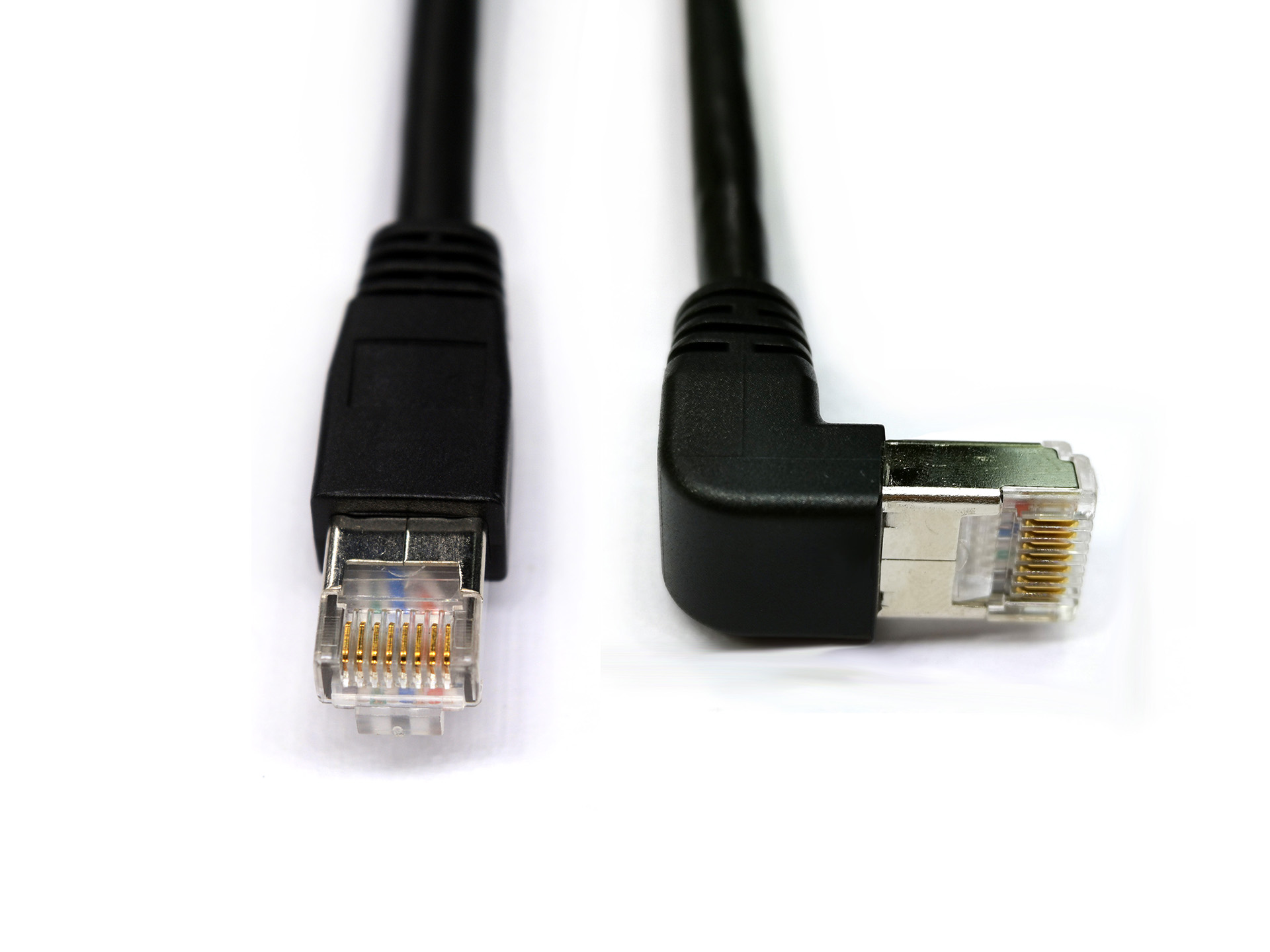

The right angle GigE cable is double shielded and CAT6. This cable has one right-angled side and one straight side. The cable is of industrial quality. It is dependable and appropriate for industrial cameras and frame grabbers. This camera cable is compatible with the majority of GigE industrial cameras; for more information, please see the compatibility cameras list.
- SSTP double shield, braid + foil design for maximum protection from EMI/RFI.
- Flame Retardant Grade: VW-1.
- Meet industrial GigE vision standards.
- Abrasion-resistant, flame-resistant, torsion-resistant, and heat-resistant.
- Gold-plated on the RJ45 contact.
Compatibility Cameras ListThe following cameras can also use the right-angle GigE cable.
- Baumer GigE Cameras, such as HXG series, LXG series, MXG series, TXG series, SXG series, VCG series, VLG series, and VEG series.
- Dalsa GigE Cameras, such as Genie Nano series, and Spyder3 series.
Emergent Vision Technologies GigE Cameras, such as Bolt 25 GigE Area Scan series, 10 GigE Area Scan series, and Accel 25 GigE Line Scan series.
JAI GigE area scan cameras, such as the Fusion series, Apex series, C series, Go Series, Spark Series, and Sweep+ series.
PixeLINK GigE area scan cameras, such as PL-B741, PL-E952, and PL-X9512.
Sony GigE area scan cameras, such as XCG-5005, and XCG-V60E.
illunis GigE cameras, such as CMV-50 MP GigE, CMV-71 MP GigE.
Basler GigE Cameras, such as the Basler ace series, Basler aviator series, Basler pilot series, Basler racer series, and Basler scout series.
Allied Vision GigE Cameras, such as the Goldeye series, Mako series, Manta series, and Prosilica series.
FLIR GigE Vision Cameras, such as Blackfly S GigE series, Blackfly GigE series, Grasshopper2 GigE series, Grasshopper3 GigE series, Zebra2 GigE series, Flea3 GigE series.
Imperx GigE Vision Cameras, such as Bobcat series, C2000 3 MP CMOS Camera, IP67-C2010 3 MP CMOS Camera.
Opto-e mvBlueCOUGAR series.
The Imaging Source’s GigE cameras, such as 38 series, 33 series, and 33 “e” series.
DAHENG MER-G, MER-G-P, MARS-G-P, MER2-G, MER2-G-P series GigE Vision Cameras.
Right angle GigE cable CustomizationWe accept any customization for the following:
- Angle orientation. We have 4 orientations, that is the left angle, right angle, exit up, and exit down.
- Locking screws. You can have the RJ45 connectors with/without locking screws. Besides, we usually use M2 locking screws, you can have M3 or 4-40UNC, 2-56UN locking screws instead.
- Cable length. From 0.1 meters to 100 meters.
- Cable type. Cat5, Cat5a, Cat5e, Cat6, or even Cat7 as options.
- You can have a high-flex cable for the drag chain and robot application.
- Cable color. Black, green, violet and etc.
