USB2.0 type A-A male cable

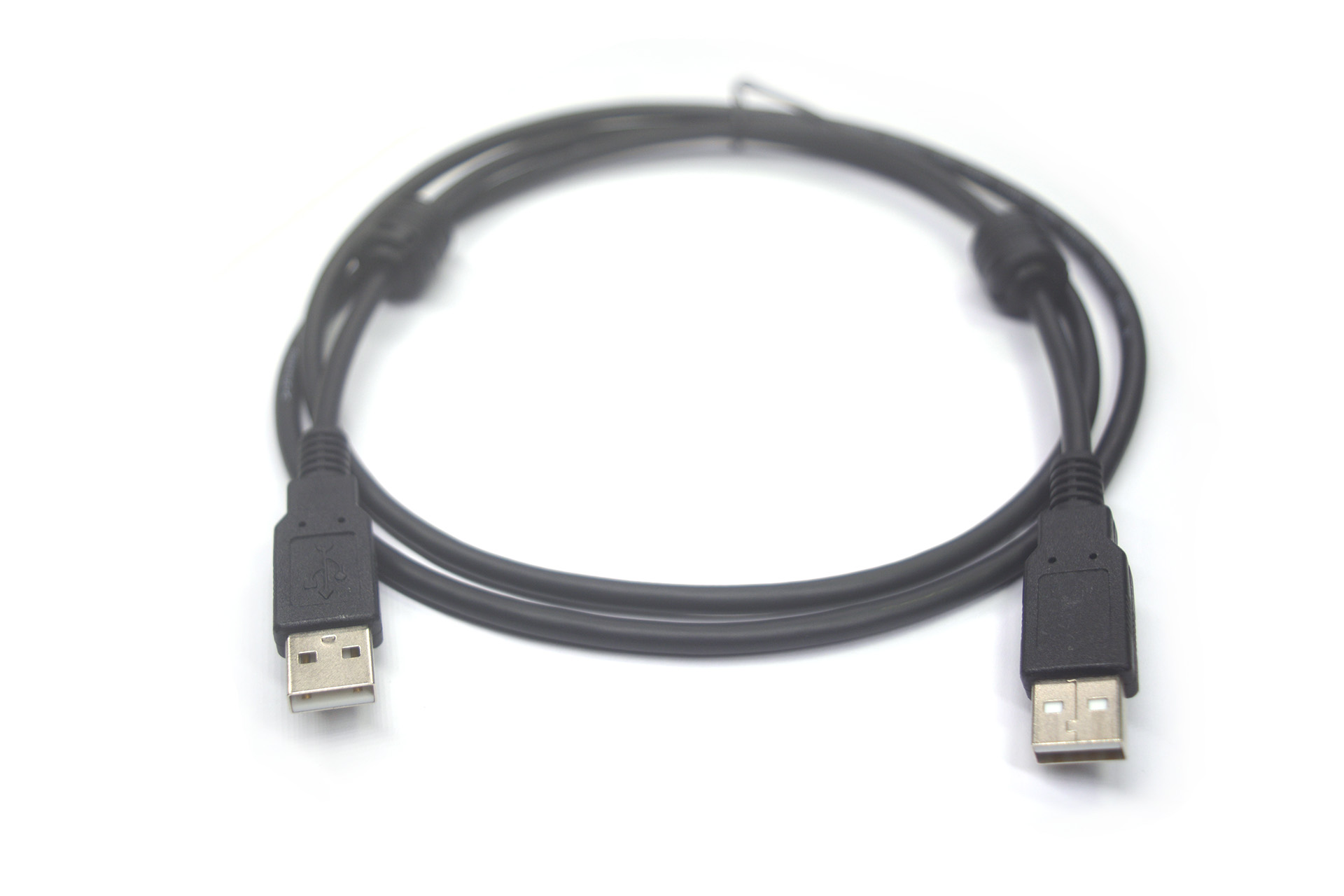

This USB2.0 type A-A male cable is industrial grade. It has the full shield aluminum foil layer and metal braided mesh layer. In addition, The cable has two ferrite cores on both sides. Both the USB 2.0 type A male sides are also fully shielded. The power supply wires(red and black color) are AWG24, and the data transmission wires(white and green color) are 28AWG. In conclusion, the cable has strong EMI and EMC performance, it’s ideal for the industrial complex electromagnetic environment.   Please refer to the table below for the cable specification:

CABLE SPECIFICATION

SPEC No.:

7/0.127TA*1PR+7/0.2TA*2C+AEB          65%       USB V  2.0

USB

V2.0

Customer

Customer NO.

8 Code:

44120180

Sample NO:

W20080227013

UL File NO.

E101344

UL Style:

UL2725

Date:

3/4/08

Spec NO:

KDHD401P004579——

CSA File NO.

0

CSA Style:

0

Edition:

Secondly Edition

Operation NO:

0

Structure

Structure A

Structure B

Conductors

Structure AWG

AWG

28# (7/36)

24# (7/32)

Material

—

Tinned Copper

Tinned Copper

O.D.

mm

0.38 Ref

0.6 Ref

Insulation

Material

—

HD-PE

SR-PVC

Diameter

mm

0.80±0.05

1.07±0.07

Average Thickness

mm

0.210 Ref

0.235 Ref

Color

—

AS Color Code

AS Color Code

Twist

Direction

—

Right (S)

—

Diameter

mm

1.6Ref

—

Layer

Direction

—

Right (S)

Pitch

mm

58 Ref

Diameter

mm

2.55 Ref

Shielding 1

Material

—

—

AL-foil/mylar

—

Conductive Side

—

—

Outside

—

Overlap Rate

%

—

25 MIN

—

Drain wire

Structure AWG

AWG

28# (7/36)

Material

—

Tinned Copper

Shielding 2

Shield

—

Braid

Material

—

Tinned Copper

Coverage Rate

%

65 MIN

Jacket

Material

—

PVC

Diameter

mm

4.5 ± 0.15

Average Thickness

mm

0.74 Ref

Extrusion

—

Solid

Externals

—

Plane

Color

—

P001

Inking

Color

—

WHITE

Inking NO.

522D

 AWM E101344 STYLE 2725 VW-1 80℃ 30V SPACE SHUTTLE-D

522C

 AWM E101344 STYLE 2725 VW-1 80℃ 30V SPACE SHUTTLE-C

COLOR CODE 1. GREEN*WHITE 2. BLACK (P570) 3. RED (P572)

USB2.0 type A-A male CABLE CHARACTERS
SPEC No.:	7/0.127TA*1PR+7/0.2TA*2C+AEB 65% USBV 2.0
Customer			Customer NO.				8 Code:		44120180		Sample NO:	W20080227013
UL File NO.	E101344		UL Style:		UL2725		Date:		3/4/08		Spec NO:	KDHD401P004579——
CSA File NO.	0		CSA Style:		0		Edition:		Secondly Edition		Operation NO:	0
Electric Characters 1.Voltage rating :30V 2.Temperature rating:60℃ 3. Spark test : AC 500V / 0.15 sec MIN 4. Dielectric strength: AC 750V/1sec MIN 5. Insulation resistance: SR-PVC DC-500V 10MΩ/KM MIN. at 20℃ PE: DC-500V 100MΩ/KM MIN. at 20℃ 6. Conductor resistance: 28AWG-232Ω/KM MAX. at 20℃ 24AWG-93.2Ω/KM MAX. at 20℃
Transmission Characters: 1. Conductor resistance unbalance: 5% 2. Attenuation:
Frequency(MHz)		0.512	0.772	1.00	4.00	8.00	12.0	24.0	48.0	96.0	200.0	400.0
Attenuation(MAX)db/cable		0.130	0.150	0.20	0.390	0.570	0.760	0.950	1.350	1.90	3.20	5.80
3.Impedance : 30Ω±30% @ TDR (Common mode) 90Ω±15% @ TDR (differential) 4.Propagation Delay : 5.2ns/M MAX 5.Propagation Delay skew : 100PS
Physical Characters 1.Falme test of cable : 1.1 :VW-1 2. Tensile strength test ( before aging) : 2.1 Sheath: ＞ 1.05kg/mm2 2.2 Insulation : ＞1.12kg/mm2 (SR) 2.3 Insulation : ＞1.05kg/mm2 (PE) 3.Tensile strength test ( after aging): 3.1 Sheath : ＞70% 3.2 Insulation :＞70%(SR) 3.3 Insulation :＞70%(PE) 4.Elongation (before aging) : 4.1 Sheath: ＞100% 4.2 Insulation : ＞100% (SR) 4.3 Insulation: ＞100% (PE) 5. Elongation( after aging) : 5.1 Sheath: ＞65% 5.2 Insulation : ＞70%(SR) 5.2 Insulation: ＞65%(PE) 6.Requirements for green environment protection : Accord with RoHS
Approval	Frend				Auditor		Joan				Producer	Tina

      For more information about USB ferrite core, please refer to Wikipedia.
