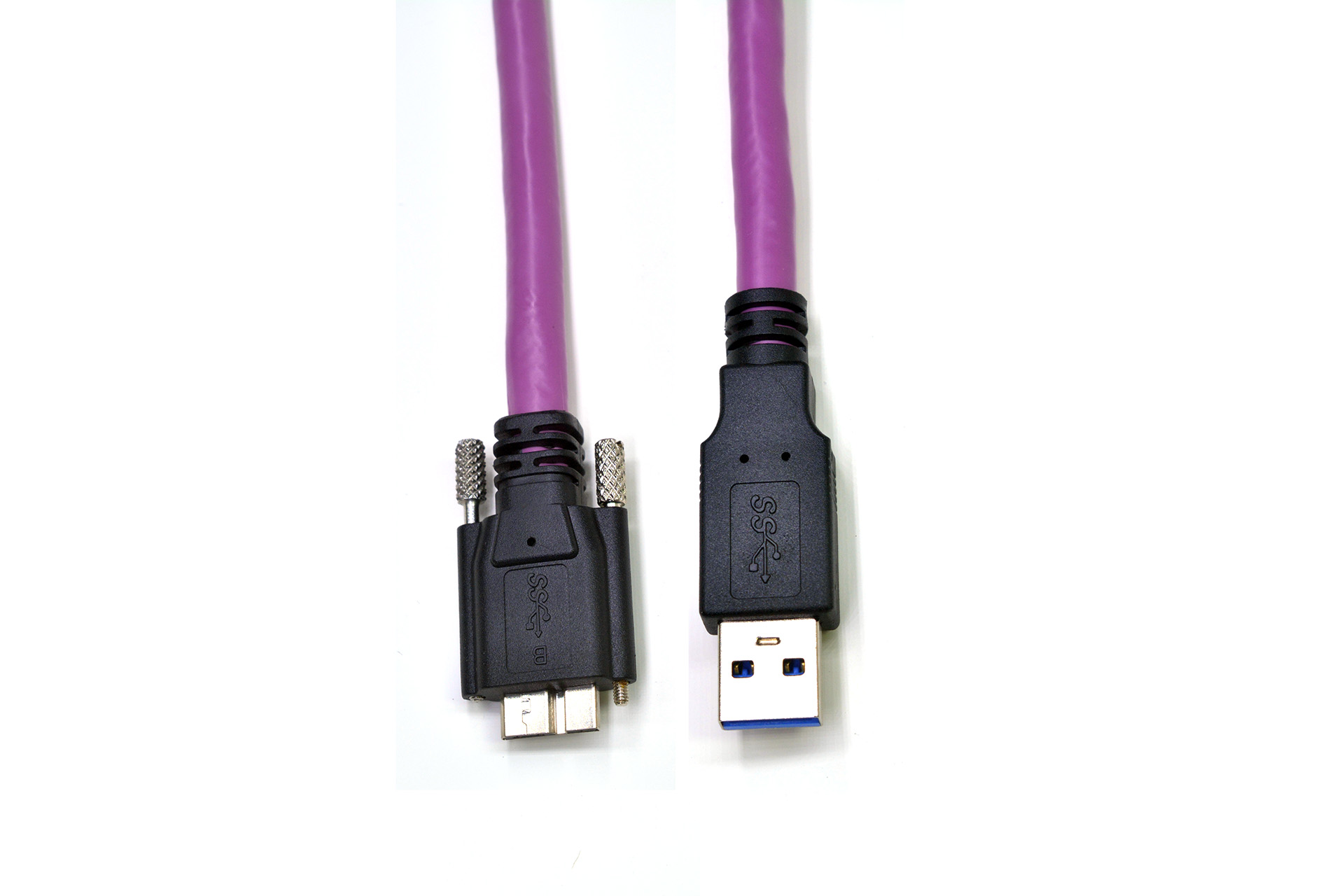

USB3.0 Type-A to Micro-B cable with locking screws

USB3.0 Type-A to Micro-B cable with locking screws



Model number: MI-S-0330
Application: drag chain, for industrial USB3 vision camera.

Send InquiryChat Now
Product Details
This USB3.0 Type-A to Micro-B cable with locking screws is high flex, and suitable for the drag chain. It can bend over 10 million cycles! The cable complies with the USB3.0 VISION standard, the transmission rate is up to 5G bps, and the distance is up to 5 meters.  If you’d prefer the length over 5 meters, or have a high EMI/EMC performance requirement, we suggest you use USB3.0 active optical cable instead. This cable can replace Basler Cable USB 3.0, Micro B sl/A, P, 5 m – Data Cable(order number 2000033241), and is compatible with Basler area scan cameras, such as Basler Ace series, Basler dark, Basler pulse industrial cameras. It can replace many other USB3.0 vision cables used for industrial cameras, see the “Compatibility List” for more details.

USB3.0 vision cable Features

  • Transmit speed up to 5Gbps.
  • As long as 5 meters.
  • 100% EMC and EMI.
  • OD 7.0 mm, fully shielded.
  • Bending over 10 million cycles, suitable for drag chains, and robots.
  • Stable and durable.
  • Meet USB3 vision standards.


Compatibility Cameras List

  • Basler Ace series, Dark series, Pulse series.
  • Baumer CX series, such as VCXU-51M.
  • Allied Vision, such as Alvium 1800 U series, and the Mako series.
  • FLIR Blackfly S USB3, Blackfly USB3 series, Chameleon3 USB3 series, Firefly DL, Firefly S, Flea3 USB3 series, Grasshopper3 USB3 series.
  • Imperx C4180, C4181, C5180 series.
  • Opto-e COE-U series, mvBlueFOX3-2 series.
  • Teledyne, such as Lumenera LT series.
  • The Imaging Source, such as 23, 27, 33, 42 series, and USB 3.0 Polarsens series.
  • JAI , such as the Alex series, Go series and Spark series.
  • XIMEA, such as xiQ series, xiC series USB3 Vision Cameras.
  • DAHENG MER, MER2, MARS, VEN series USB3 Vision Cameras.


USB3.0 Type-A to Micro-B cable alternative

  • Basler Cable USB 3.0, Micro B sl/A, P, 5 m – Data Cable(order number 2000033241).
  • Baumer, such as KSG U2/KSGU6GC0300G/KSG(Article no.: 11702660), U2/KSGU6GC0500G(Article no.: 11702816).
  • Allied, such as 9434, 12326, 12327, 12328, 12329 USB3.0 A-micro B copper cables. 12358, 12359, 12360 AOC, drag chain suitability, micro-B plug with screw locks to standard A cables.
  • FLIR, such as ACC-01-2300, ACC-01-2301 USB3 Type-A to Micro-B (Locking) Cable. ACC-01-2304, ACC-01-2305, ACC-01-2306 USB3 Type-A to Micro-B Locking Cable.
  • Opto-e CBUSB3001 Passive USB 3.0 cable, industrial level, horizontal screw locking, 3 m.
  • Teledyne, such as Lumenera La303ML – USB 3.1 Cable A-Male to Micro-B male Locking (3m / 9.75ft).
  • The Imaging Source, such as CA-USB30-AmB-BLS/3 and CA-USB30-AmB-BLS/10 USB3 vision cable.
  • Alysium-Tech, such as A74-2657, A74-6302, and A74-9583 USB3 vision cable.
USB3.0 Type-A to Micro-B cable

USB3.0 drag chain cable customization

We accept any customization as the following:
  • Cable length, from 0.2 meters to 5 meters. If you’d prefer a cable longer than 5 meters, we suggest you use a USB3 AOC instead.
  • Connector type. we have any USB3.0 connector types as options, such as Type-A, Type-B, micro-B, and Type-C. We also have male/female connectors, with/without locking screw connectors.
  • Connector angle orientation. We have normally four orientations as options, such as exit left, exit right, exit up, and exit down.
  • Cable type, color, OD, etc.
